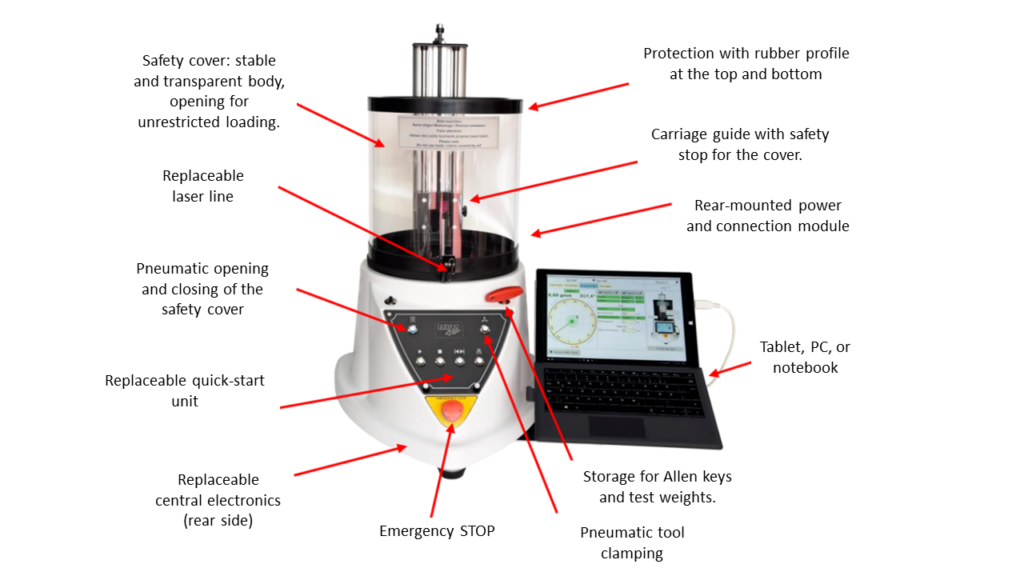

Balancer BMT200.TS40 et TS100

TS 40: For tools in:

SA/BT 30, 40
HSK 32, 40, 50, 63
PSC-Capto 3, 4, 5

TS 100: For tools in:

SA/BT 30, 40, 50
HSK 32, 40, 50, 63, 80, 100
PSC-Capto 3, 4, 5, 6, 8

User-friendly – Efficient organization. PC (Windows 10) and printer (optional), Worktable for storage of adapters, PC, Printer, and accessories (optional).

For each tool, for each workpiece.

Composition

Granite base

Optimized frame with piéso sensors.

Balancing Technology

Balancing helps minimize vibrations, thereby reducing wear on spindles and tools, cutting downtime, and enhancing the overall reliability of the entire process.

Angular indication for counterweight.

By material addition.

Axial drilling.

Radial drilling.

Simple and convenient display

Different types of integrated balancing methods
Display of unbalance in gr/mm, gr, or DIN quality class.
Color display indicating whether the rotor unbalance is within tolerance or not.
Indication of the maximum possible rotation speed on the machine spindle.
Laser pointing display of unbalance value and angle.
Various language options.
Dropdown menu.
10-inch touchscreen display or PC/tablet/notebook.
Clear and dialogue-guided operation!
